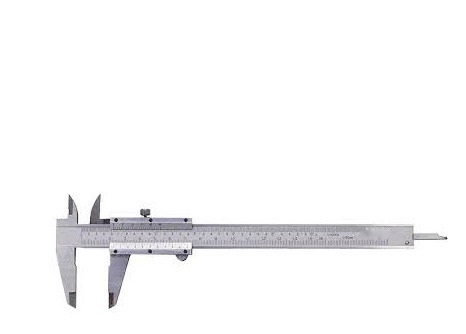

Vernier Calipers
0-150 mm./0.02
9-200 mm./0.02
0-300 mm./0.02
0-600 mm./0.02
0-1000 mm./0.02
0-1500/0-2000 mm.(Higher Range)

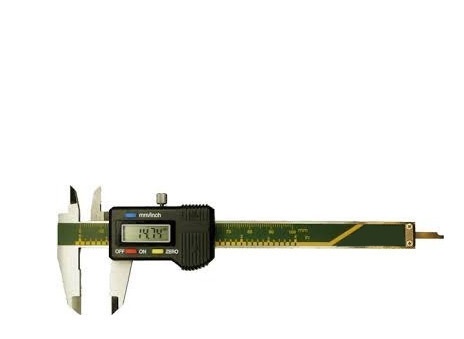

Dial Caliper Digimatic Caliper
Flat Type ros 100 / 150 mm. Base)
Flat Type (0.02 mm. / mtr.)
Square Type

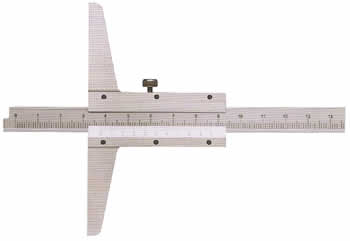

Depth Gauge (vernier/dial)
0-150 mm./0.02
0-200 mm./0.02
0-300 mm./0.02
0-600 mm./0.02

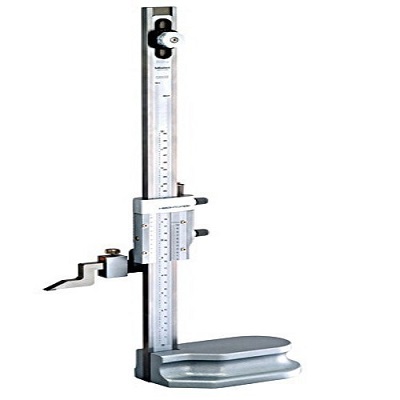

Height gAUGE (VERNIER tYPE)
0-300 mm./0.02
0-450 mm./0.02
0-600 mm./0.02
0-1000 mm./0.02

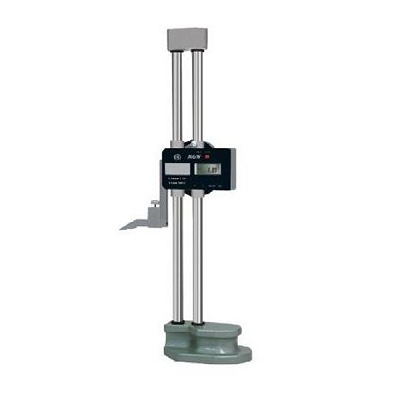

height gauge (dial/digimatic)
0-300 mm./0.01
0-450 mm./0.01
0-600 mm./0.01
0-1000 mm./0.01

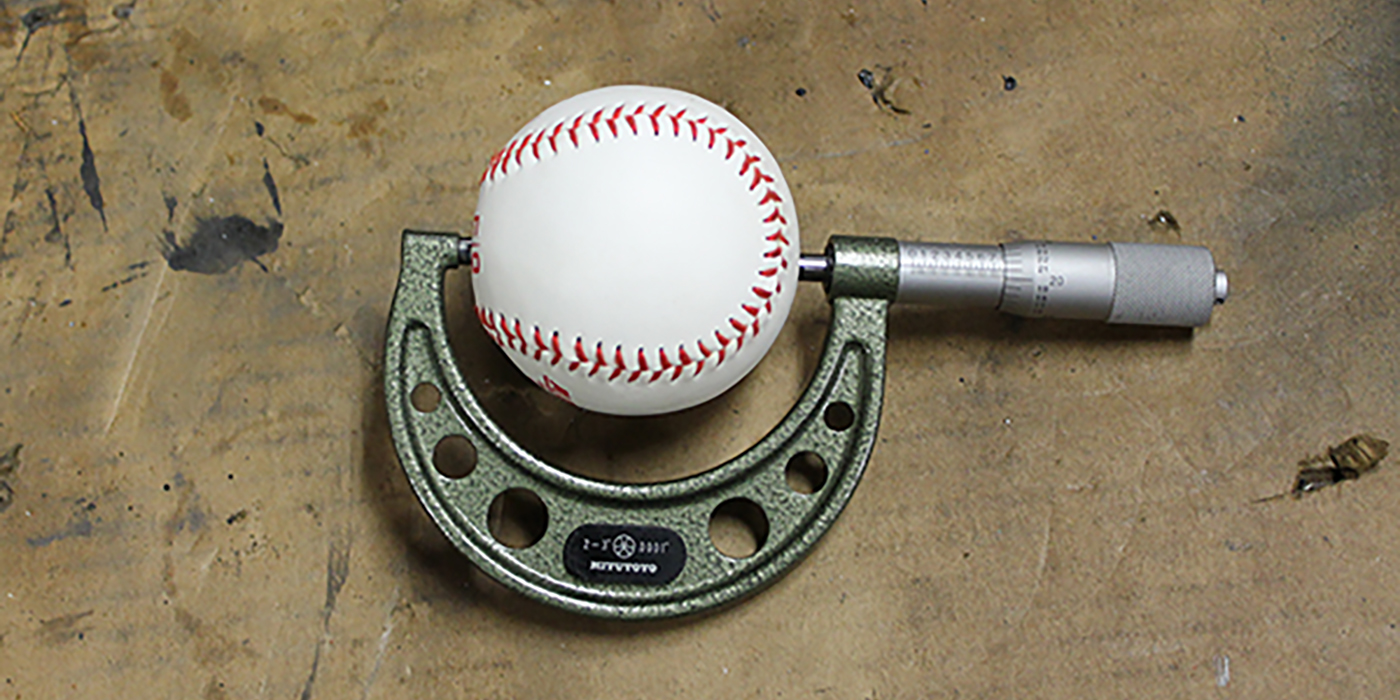

O/s. MICROMETER (FIXED TYPE)
0-25 mm. (0.01 mm.)
25-50 mm. 50-75 mm. / 75-100 mm.
One Setting Rod Calibration Free with Micrometer 9
HIGHER RANGE
100-125-150 mm. Estimate & 150-175-200 mm.
EACH STEP (50 mm.) UPTO 300 mm.
EXT. O/s. MICROMETER (Anvil Type)
0-100 / 50-150 mm.
0-150 mm. a
One Setting Rod Calibration 100/- Each Cony eres
| & | 100-200 mm. (Setting Master Extra) Da ee
| 200-300 mm. (Setting Master Extra)
EACH HIGHER STEP (100 MM STER

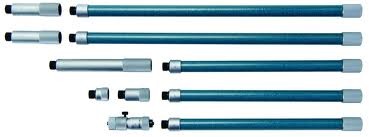

NSIDE MICROMETER (FIXED/ CINTERCHANGABLE EXTN. RODS)
Micrometer Head Up-to50mm.
Micrometer Head Up-to 100 mm.
Extension Up-to 100 mm.
Extension Up-to 101-300 mm.
Micrometer Head size Above 100 mm.
Inside Micrometer 1000-4000 mm. |

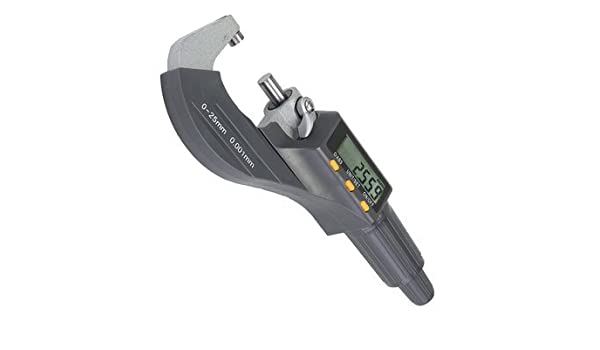

0/s. MICROMETER (Digital/Digimatic)
0-25/25-50 mm. (0.001 mm.)
FOR HIGHER RANGE Up-to 1000 mm.
B J EACH STEP (25 mm. Step)
Up-to 200 / 300 / 1000 mm.

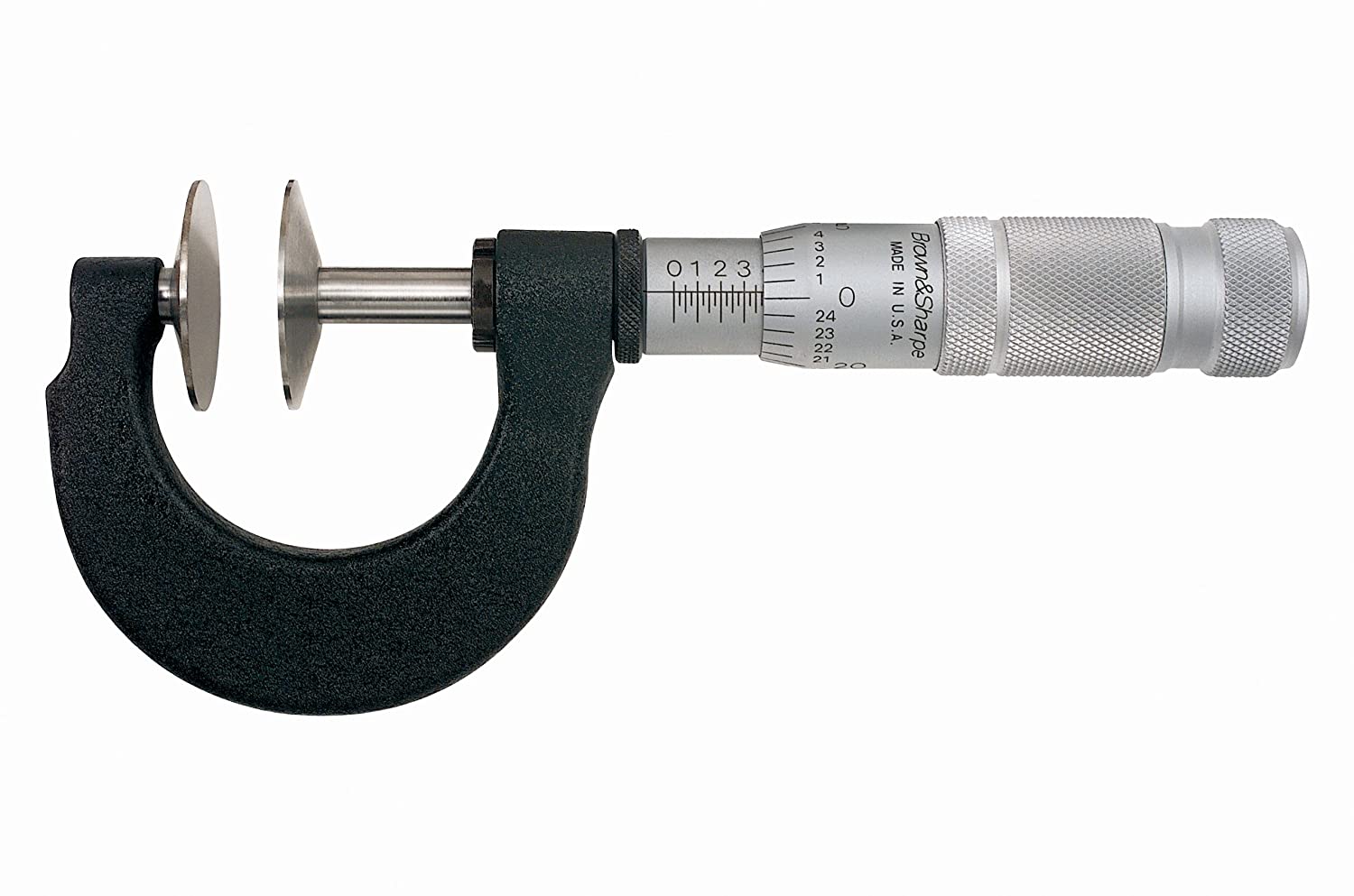

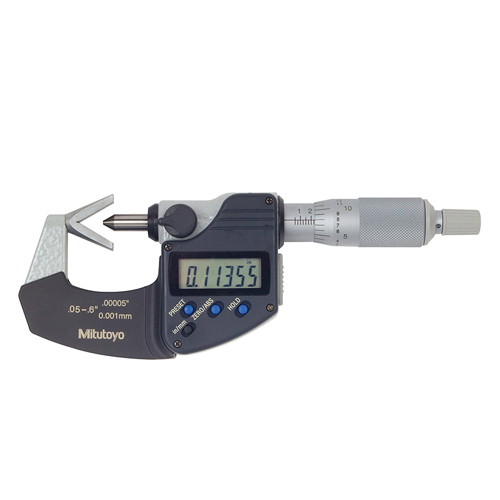

MICROMETER (Other) Flange/Bail/Spline/Point Micrometer
0-25/25-50 mm. (For L.C.0.01 mm.)
FOR HIGHER RANGE Up-to 300 mm.
EACH STEP (25 mm. Step)

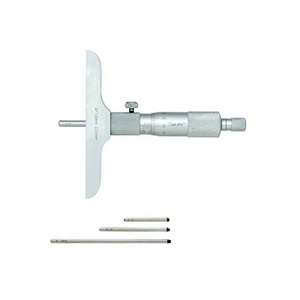

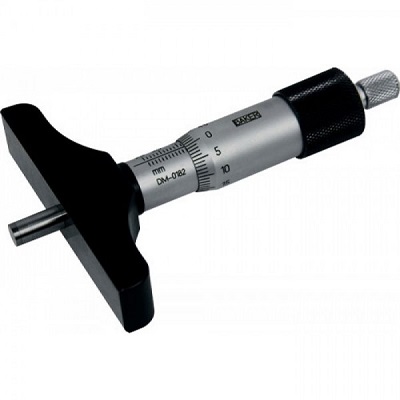

DEPTH MICROMETER - 0.01 mm.
0-25 mm.
10-100 mm.
0-300 mm.
DEPTH MICROMETER - 0.001 mm.
0-25 mm.
0-100 mm.
DEPTH MICROMETER - 0.001 mm.
0-25 mm.
0-100 mm.

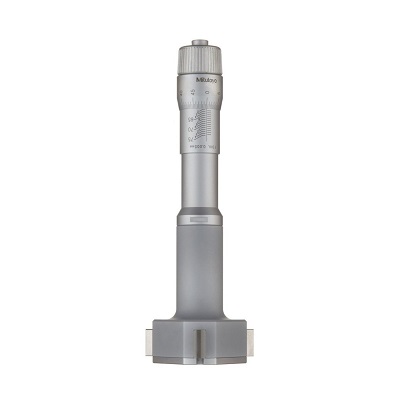

THREE POINT MICROMETER (HOLE TEST Micrometer )
From 3 to 50 mm.
50 to 75 mm
75 to 100 mm
100 to 159 mm
150 to 200 mm
PLUNGER DIAL
0-10mm./ 0.01
0-25mm: /0.01
0-50 mm: /0.01
0 – 100 mm 0.01
digimatic dial
0- 1 mm / 0.00)
O- 12 7 mm, / 0.001
0-50mm & 100 mm, / 0.001

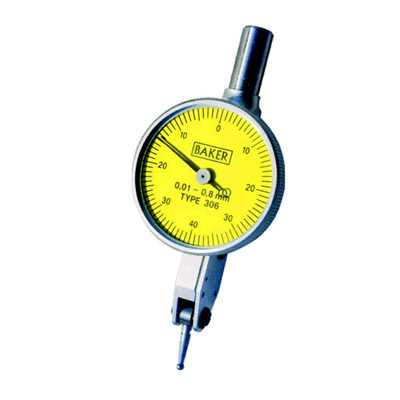

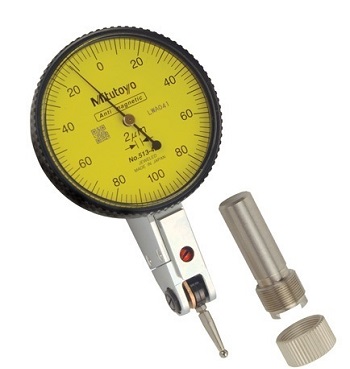

LEVER DIAL / DIAL INDICATOR
0.01 mm. (0.8 – 1.0 mm.)
0,001 / 0.002 mm. (0.2 mm)

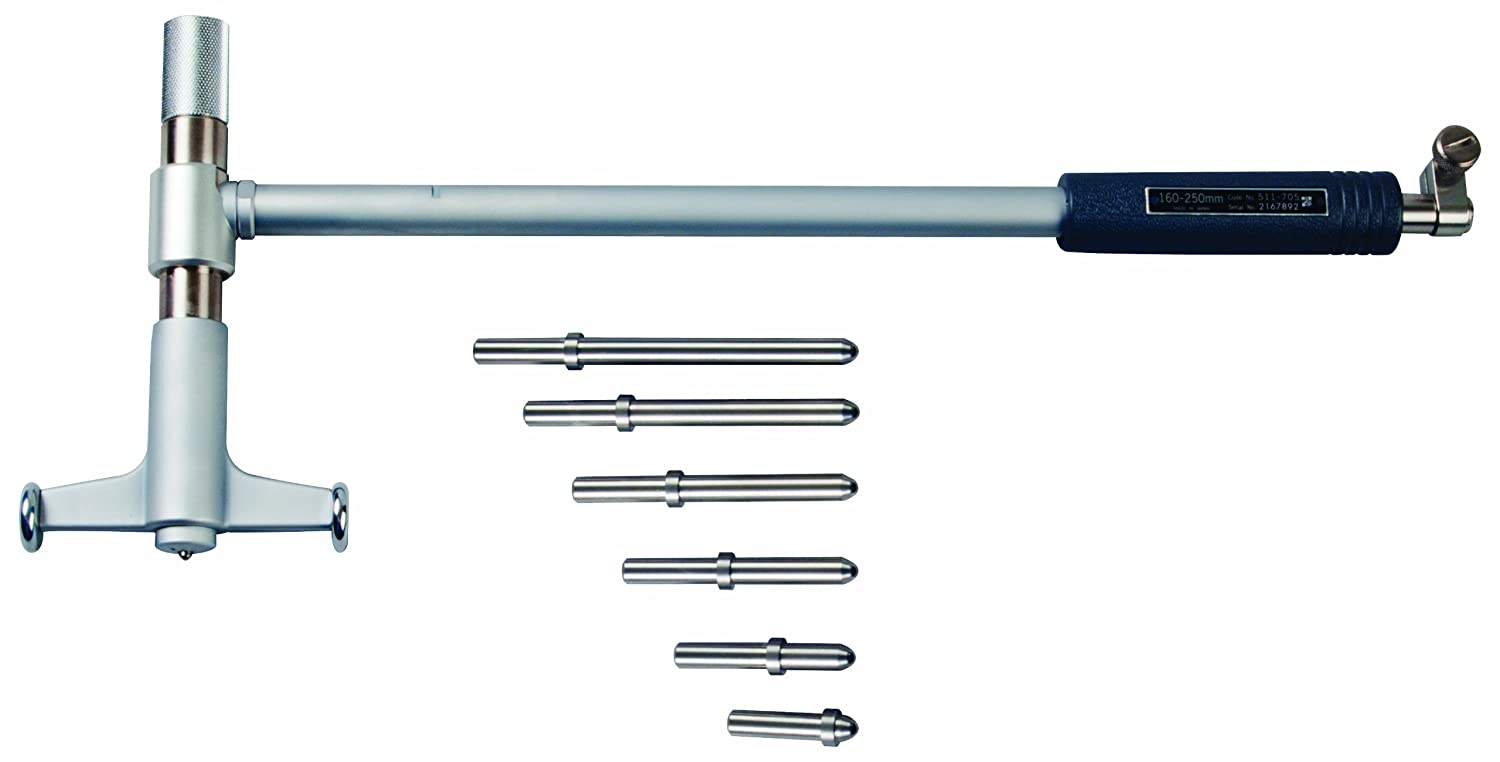

BORE GAUGE (Without Dial)
10-18/18-35 mm.ONLY TRANSMISSION
35-60/50-100-150 mm.
160-250 mm. -250-400 mm.
with Anvil Set Up-to 150 mm.
With Anvil Set 150 to 400 mm.

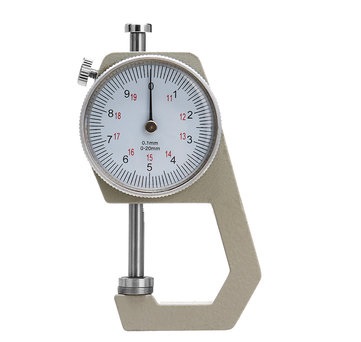

DIAL THICKNESS GAUGE
0-10 mm. / 0.01
0-30 mm. / 0.01
0-1 mm. / 0.001
PISTOL CALIPER
0- 50mm. – 0.1 mm.
0-100 mm. – 0.1 mm.
ANGLE MEASURING INST.
Beval Protractor, 150-300 mm.
Combination Set

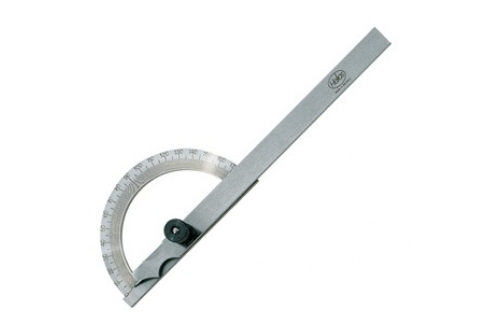

Angle Protractor 0-180/L.C. : 1 Deg.
DIAL SNAP GAUGE
0.01 (Up-to 100 mm.)
0.001/0.002 mm (Up-to 100 mm.)
Above 100 mm, Up-to750 mm.

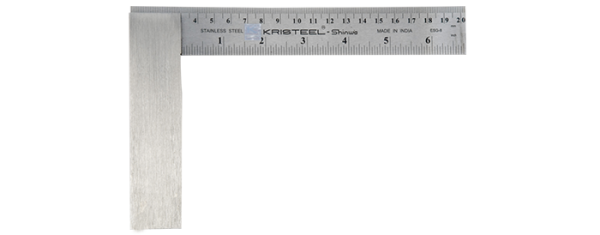

ENGG. SQUARE / Right Angle
Up-to 200 mm.
Up-to 300 mm.
FEELER GAUGE SET
Up-to 2.0 mm. (Long.)

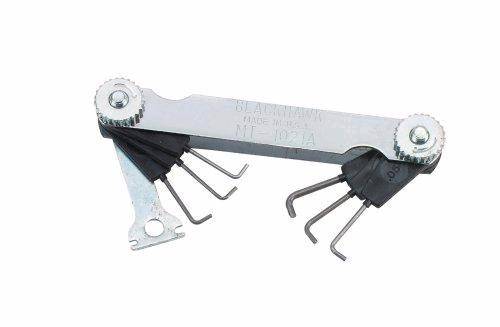

WIRE / GAP GAUGE
Per Gap / Slot

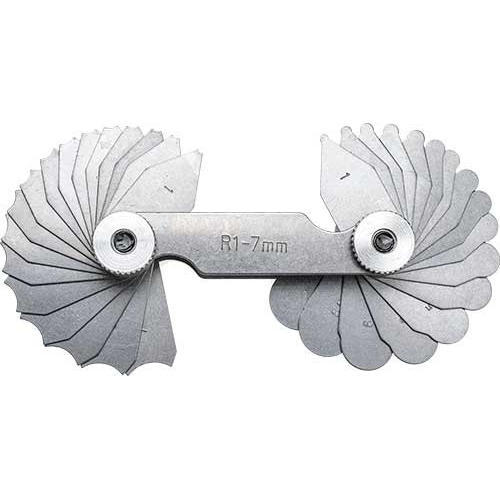

RADIUS GAUGE
0.3 To 7.0 mm.
7.5 To 15.0 mm.
15.5 To 25.0 mm.

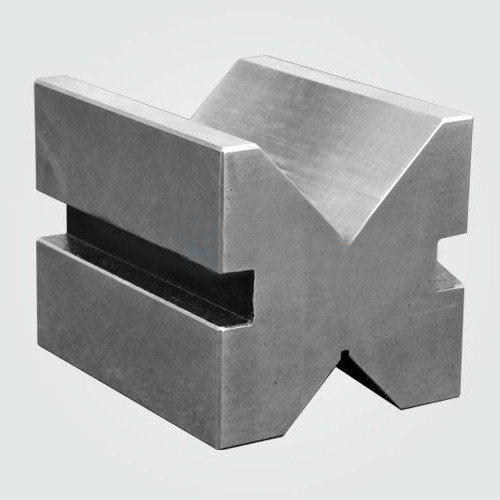

“v" BLOCK
3/4”

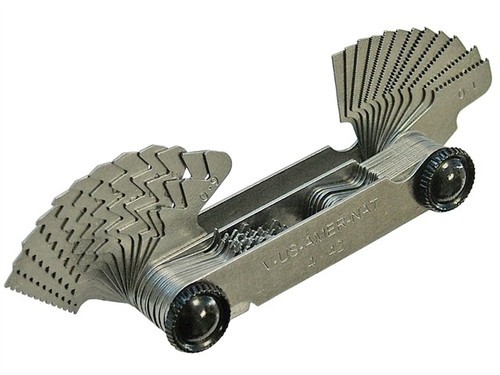

THREAD PITCH GAUGE (Set.)
0.35 -7.0 mm.
4 To 60 TPI (Metric / Inch.)

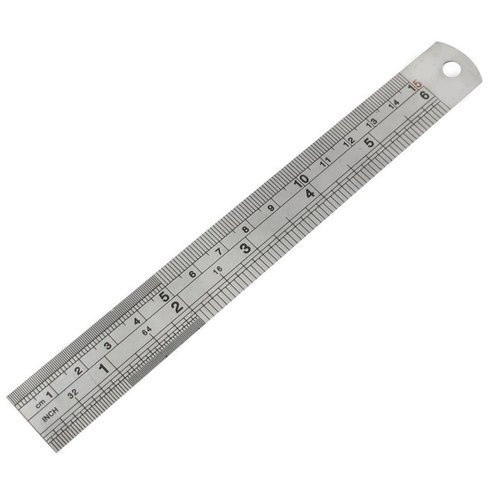

MEASURING SCALE
Up-to 300 mm,
300 To 600 mm.
Up-to 1000 mm.
Above 1000 mm.

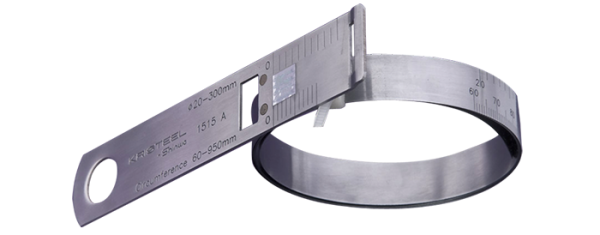

PI TAPE
Up-to 300 mm. Dia,
HIGHER RANGE

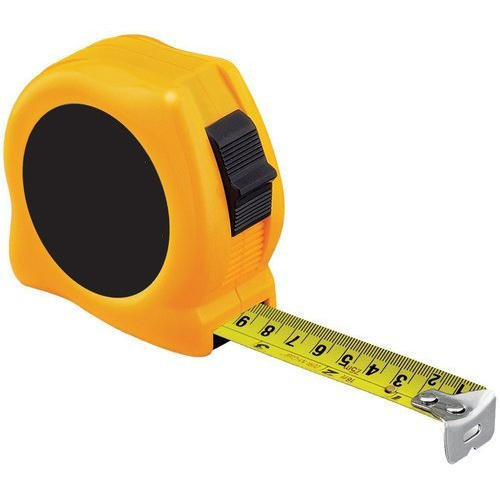

MEASURING TAPE
Up-to 3 Mtrs.
5 To 10 Mtrs.
ABOVE 10 MTR. ADDITIONAL
CHARGES FOR EACH MTR.
HIGHER RANGE ( 1 MTR Steps
UP-TO 50 MTRS.
SPHERE / Ball Diameter
Up-to 10 mm. Dia.
Above 10 Up-to 100 mm
